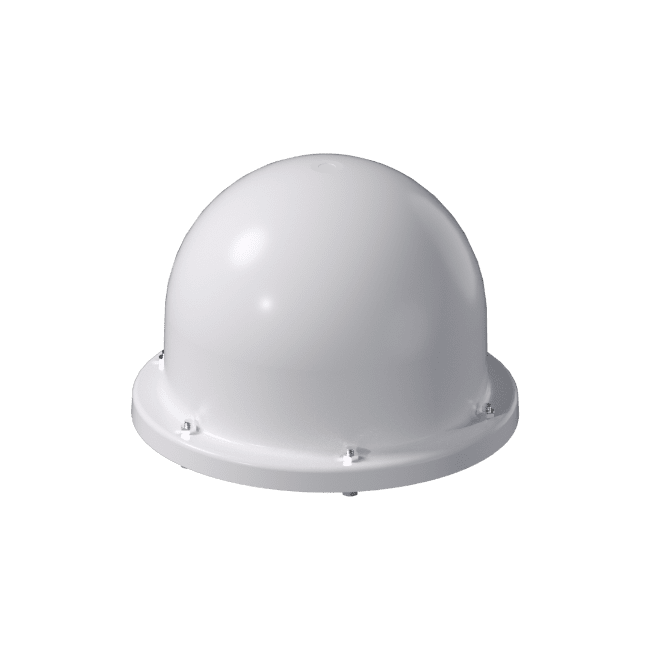

Antenna Radar Dome
-

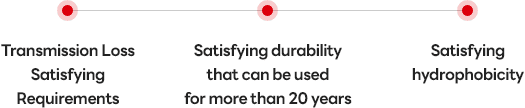

Securing price competitiveness through material changeAs an item that was manufactured using existing FRP materials,
our company implemented lightweight and water-repellent products using ASA materials -
Design progress to secure electrical performance and durabilityDesigned to meet the transmission loss standard, and realized a product that
does not cause physical damage even at a wind speed of 55 m/s -
Product design that satisfies strict hydrophobicity standardsThe surface contact angle of the radar dome is designed to be more than 90 degrees,
so that the angle of water droplets on the radar dome can be more than 90 degrees.
.png?ver=1716154592)
.png?ver=1716154592)
.png?ver=1716154592)
Technical Specification
| Transmission Loss | satisfies less than 0.10 dB in 1.0 ~ 1.7 GHz |
| Size (width/height mm) | Φ450.0±1.5 x 309±1.5 |
| Weight (kg) | less than 1.7 |
| Color | White |
| Materials | ASA |
